产品展示

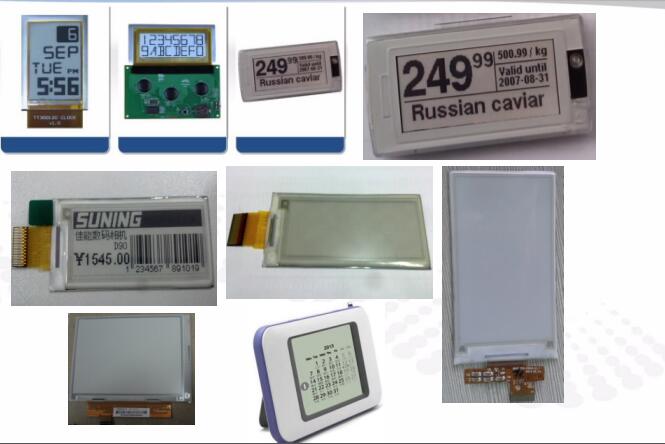

．Product Name：EPD(E-paper display)

．Appearance： white/black mode

．Optical：contrast>8，response time:300-500ms, gray scale>16 (if based on TFT base)

．Operating Temp.： 0 ℃ ～50℃，Storage Temp：-20 ℃ ～70 ℃

．Voltage：15～18 (V)

．Consumption ：updating: 0.8uA/ C㎡; display without updating: 0; Low battery, 3V(38mA) battery can support update 150,000 times

．Dimension：segment type of PCB/FPC base could be customized

．Driving method：the driving method is different from normal LCD. The input voltage≥1.5V, it is required to provide as LCM only

．Application range：smart card, ESL, watch, gift card, advertizing, home application, remote controller etc..

．Remark：thin & flexible:  for segment type of FPC base only, figner-press available, anti-fragile, sunlight readable etc
